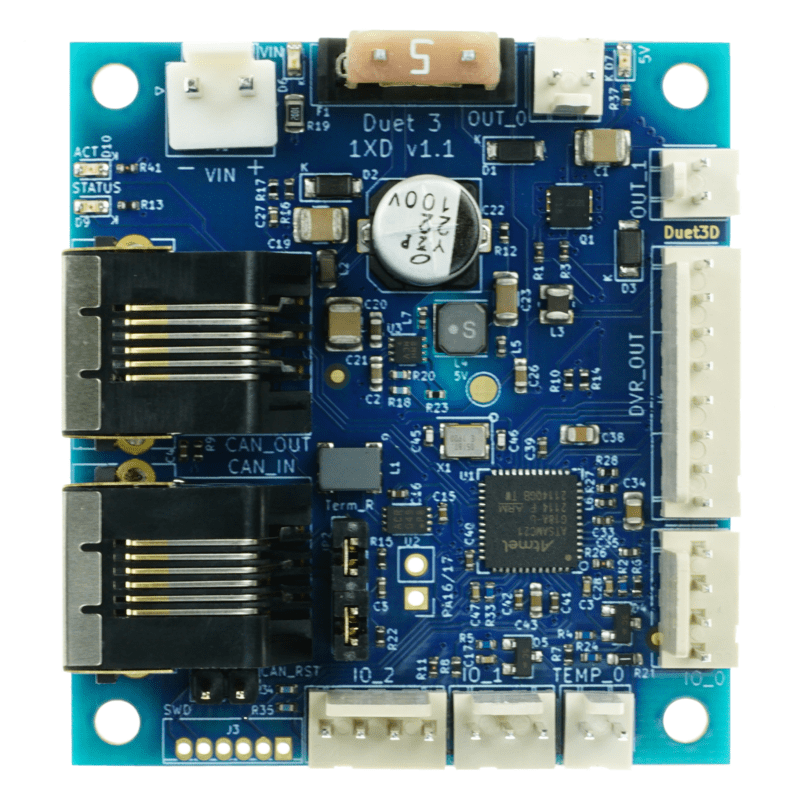

Duet 3 Expansion Board 1XD v1.1
Non-returnable
Rs.5,800.00
CAN-FD connected expansion board for the Duet 3 Mainboard that provides connection to an external stepper driver and associated peripherals.
The Duet 3 Expansion 1XD is a CAN-FD connected expansion board for the Duet 3 Mainboard that provides connection to an external stepper driver and associated peripherals. It has standard Duet 3 RJ11 connectors for daisy-chaining the CAN-FD bus and accepts up to 48V to allow sharing power supplies with stepper drivers up to 48V.
Product Details
FEATURES
Processor: ARM Cortex M0+ processor running at 48MHz.
Connectivity: RJ11 CAN In and CAN Out connectors to connect to the Duet 3 CAN-FD bus.
External Stepper Driver Connection: 5V differential Step, Dir and Enable outputs for an external stepper driver (can be used in differential or single ended mode).
Medium current outputs: Two medium-current (2A max recommended) outputs at VIN voltage with PWM capability and built-in flyback diodes.
IO: One thermistor input (reduced accuracy compared to other Duet 3 boards, designed for motor temperature measurement). One 5V-level output with PWM capability (3mA max). Three digital inputs with permanent 27K pullup resistors, protected against over-voltage.
Voltage: 12V-48V
Firmware: RepRapFirmware 3.x
