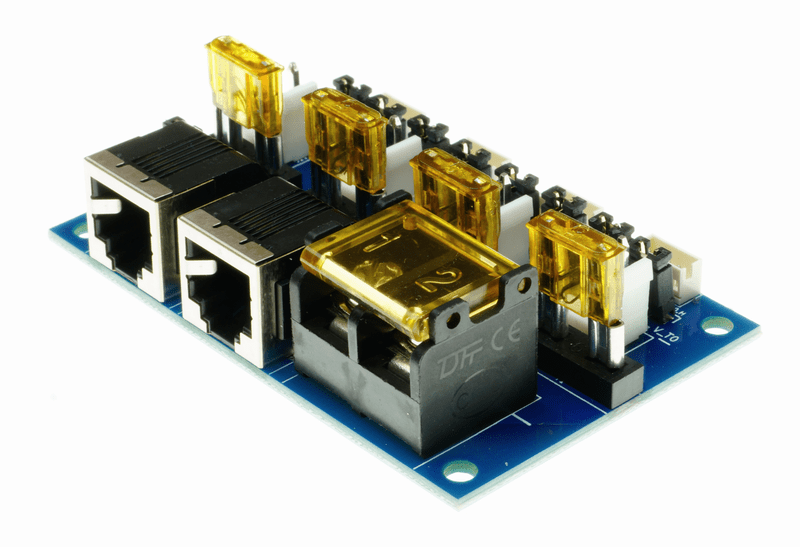

Duet 3 Tool distribution Board

Non-returnable
Rs.2,999.00

This board allows for the connection of up to 4 Duet 3 Toolboards to the Duet 3 Mainboard at one time, greatly simplifying the CAN-FD bus and power wiring.

Tool board power outputs are individually bused, and the CAN-FD bus connections can by bypassed if less than 4 tools are connected.

These can be connected to other Duet 3 CAN-FD bus expansion boards (or other tool distribution boards) via the RJ11 connector for CAN-OUT.

Quantity
Add to Cart
Product Details
FEATURES

Connectivity: CAN IN- RJ11; CAN OUT- RJ11; 4 x CAN loops to toolboards - JST ZH; Jumpers to bypass unused loops; Bus termination resistor on board (jumper selectable).

Power: 12-32V VIN distribued to 4x power out via 4x 5A fused. Output power connectors - JST VH
