Duet Panel Due 7i
Non-returnable
Rs.12,550.00
The PanelDue is a colour touch screen controller for the Duet and other 3D-printing electronics that support it.

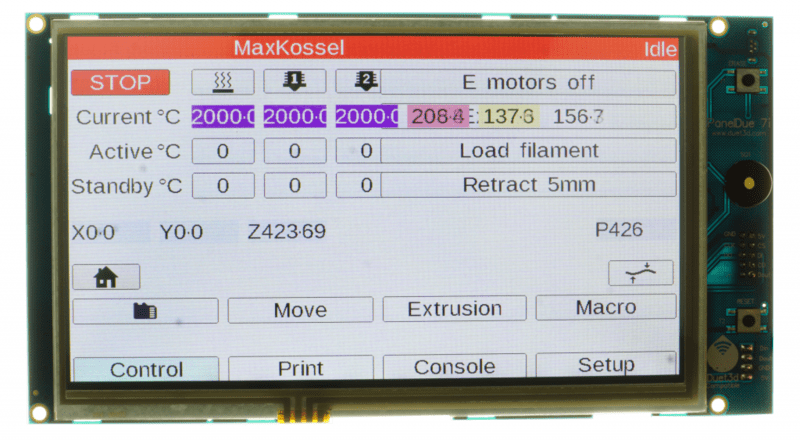

The PanelDue 7i is a colour touch screen controller for the Duet and other 3D-printing electronics that support it. The integrated version is a custom-made high-quality 7-inch or 5-inch TFT LCD panels with 800x 480 pixel resolution from a leading manufacturer, with the PanelDue controller integrated on the LCD’s PCB.
Alternatively, the control board can be purchased without a screen. In this case a SSD1963 LCD panel is required in one of 3 screen sizes/resolutions: 4.3″ (480×272), 5″ and 7″ (800×480 pixels).
Product Details
FEATURES
Resolution: 5i and 7i = 800x480 pixels.
Connectivity: A 300mm long ribbon cable (maximum recommended length) is supplied for the on board SD card, power and serial data. Alternatively if the onboard SD card is not required then a 1m long 4-wire cable for the serial and power connections is also supplied.
Voltage: 5V power from the host 3D printer controller. 2-wire async serial interface with 3.3V signal level (5V tolerant input).
Firmware: Runs PanelDue firmware: PanelDueFirmware
