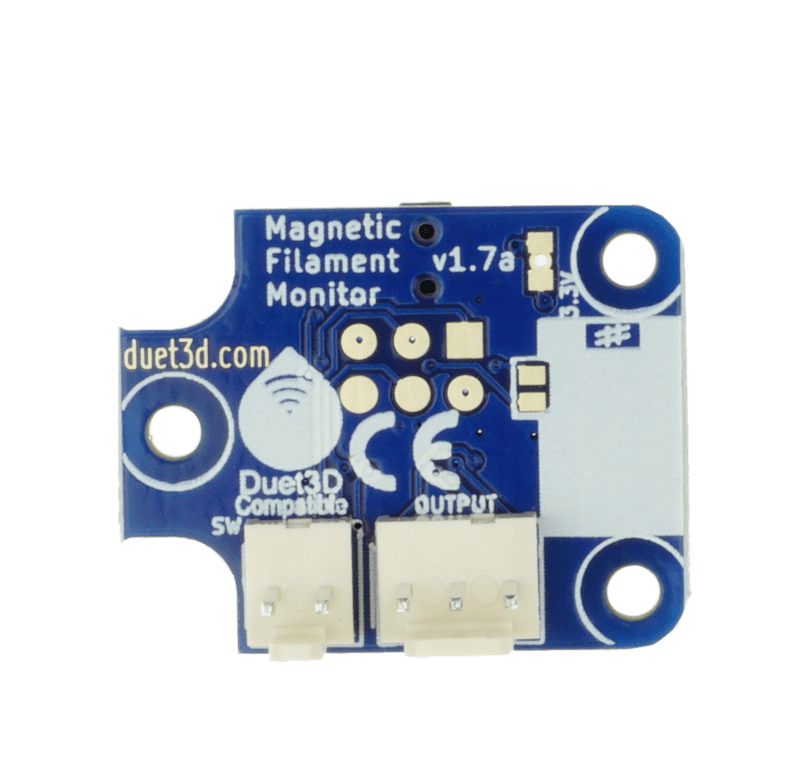

Duet Magnetic Filament Monitor

The Duet3D Filament Monitor very accurately senses filament movement. Connect it to a Duet 2 or Duet 3 and the controller will use the indicated movement to determine a wide range of extrusion issues including:

Filament run out Extruder skipping steps Nozzle starting to jam (causing skipped steps or grinding) Filament beginning to grind in the extruder

It does this so accurately because it is effectively an extruder in reverse. The filament movement rotates a custom machined hobbed magnet assembly; the magnet rotation is sensed and constantly reported to the Duet. This method has proven extremely accurate across a wide range of filaments – frequently capable of pausing the print before a filament jam or other issue has already caused the print to fail.

Kit: The monitor is available as a kit excluding the printed housing (we provide a design).

Assembled: Fully assembled in a MJF printed housing.
